24V 350W 300 x 300 mm Silicone heating pad

Description

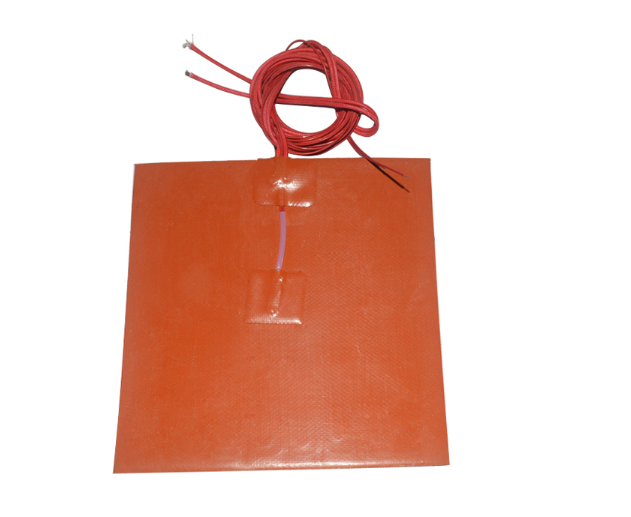

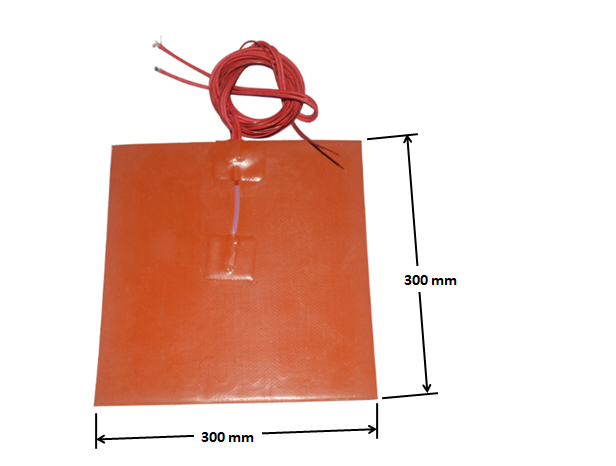

Silicone heating pad heater 300 mm x 300mm for 3d printer heat bed 24 V 350W

Silicone Heater Pad – 24V 428W | Size: 350mm x 350mm | High-Power Heated Bed for 3D Printer Build Platforms

Description:
Achieve faster and more consistent heating across your 3D printer’s build surface with this high-performance 350×350mm Silicone Heater Pad. Powered by 24V at 428W, this pad ensures rapid heat-up times and even temperature distribution, significantly reducing warping and improving first-layer adhesion.

Perfect for large-format 3D printers, DIY builds, or upgrading your existing heated bed to handle high-temperature filament printing such as ABS, PETG, Nylon, and more.

Product Features:

• Powerful Performance: 24V / 428W output for quick and even heat-up

• Large Size: 350mm × 350mm — ideal for big-format print beds

• Uniform Heating: Reduces warping and improves adhesion across the full build plate

• Flexible Silicone Construction: Adapts smoothly to aluminum beds, glass, or magnetic plates

• Easy Installation: Includes pre-attached power leads and adhesive backing (optional in some models)

• Thermistor Support: Designed with a central spot for sensor placement

---

📦 Package Includes:

• 1 × Silicone Heater Pad – 350mm × 350mm, 24V, 428W with temperature sensor.

---

⚠️ Usage Notes:

• Requires a solid-state relay (SSR) or MOSFET for safe switching

• Always use with a compatible temperature controller or 3D printer mainboard

• Ensure good insulation and thermal paste for optimal performance and safety

Product : Silicone heating pad
Rated load: 24 V DC 350W
Wire : NTC 100K 3950 sensor wire and high temperature withstand wire for heating
24V 350W Maximum working temperature : 120C°( at room temperature) ,
Current : 14.5A , Resistance : 1.65
Waterproof level : IP65

Application of Heating pad:

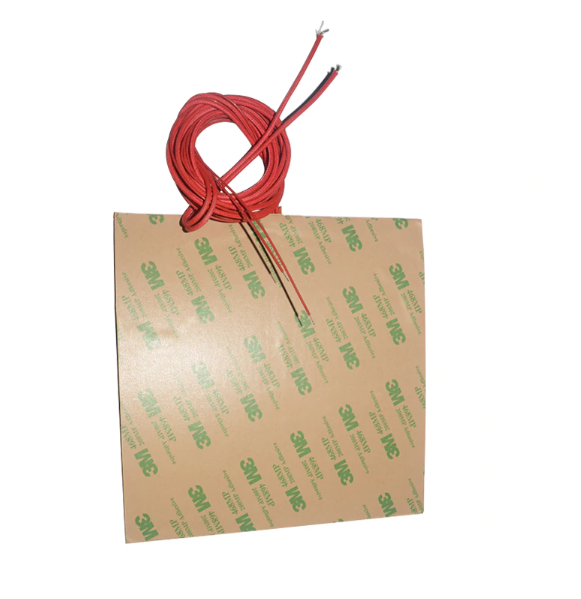

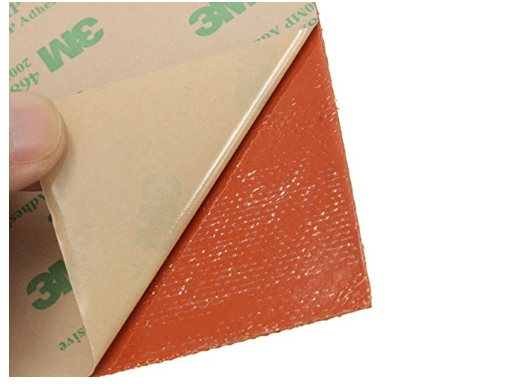

Peel off the 3M sticker and apply to 3mm or 4mm thick Aluminium build plate.
Use Solid state relay or High power Mosfet in between control board and heating bed for safety precaution.
Important Notes: Please heat only when after it’s mounted onto the build plate (Aluminium plate recommended)

Durable silicone rubber construction Extremely even distribution of heat Moisture proof and chemical resistance Industrial duty cycles for Long life 3D Silicone Heater Pad Size: 300mm x 30mm Power: 24V DC 350W Thickness: about 1.5mm. Working temperature: below 120 ℃ (suggested)
* Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility.
* It can improve heat transfer, accelerate warming and decrease power under the process of operation.
*They are heating fast and thermal conversion efficiency is high.
Versatile and may be used in many other applications.

High Power Heating (24V / 428W): Fast heat-up and even distribution across the full build area

• Large Surface Size (350mm × 350mm): Perfect for large-format 3D printers and DIY builds

• Flexible & Durable Silicone Pad: Easily bonds to aluminum or glass build plates

• Easy to Install: Comes with power leads and central thermistor spot for easy integration

• Compatible with Most 3D Printers: Works with Marlin-based controllers using SSR/MOSFET switching

• Warp-Reduction & Strong Adhesion: Eliminates corner lifting and improves first-layer performance



Comparison Table (For A+ Content or Image Listing):
