Stepper Motor Cable – XH2.54 6-Pin Female to Dupont 4-Pin Female Connector – 500mm Terminal Line for 3D Printer & CNC Motors – Stepper Motor Wiring Harness for NEMA17/23

Description

Stepper Motor Cable – XH2.54 6-Pin Female to Dupont 4-Pin Female Connector – 500mm Terminal Line for 3D Printer & CNC Motors – Stepper Motor Wiring Harness for NEMA17/23

✅ Product Description:

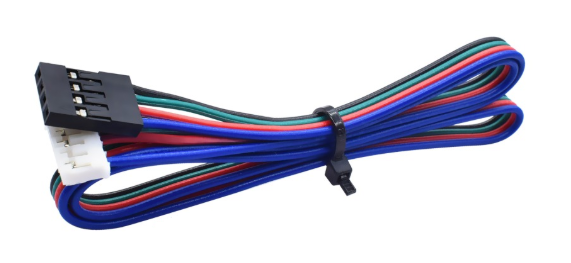

This Stepper Motor Connection Cable is designed for seamless and reliable connections between your stepper motor and controller board. With a 6-pin XH2.54 female connector on one end and a 4-pin Dupont female connector on the other, this cable is ideal for wiring stepper motors in 3D printers, CNC machines, and robotics projects.

The 500mm (50cm) length offers enough flexibility for neat cable routing, even in larger printer frames or enclosures. Built with durable, insulated wiring, this cable ensures stable current flow and minimizes signal loss for consistent motor performance.

Whether you’re replacing a damaged cable or building a custom setup, this pre-terminated harness saves time and effort. It’s fully compatible with a wide range of stepper motors and popular printer models.

Compatible With:

• NEMA17, NEMA23 stepper motors

• Creality Ender 3 / CR-10 / Ender 5

• Prusa i3 / Anet A8

• CNC routers, DIY projects

Package Includes:

• 1 × Stepper Motor Cable (XH2.54 6-Pin to Dupont 4-Pin Female, 500mm Length)

* This XH2.54 wire with connectors suitable for the most common 3D printer/ CNC NEMA 17 bipolar stepper motor.

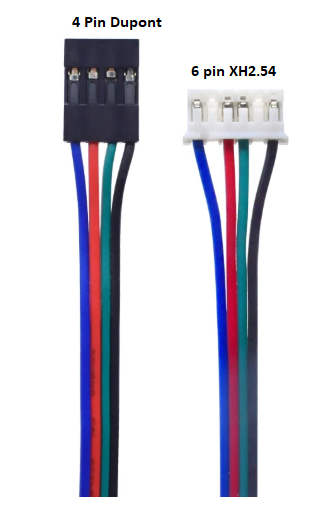

* One end with Dupont 4pin connector plugged to control board and other end with 6pin XH2.54 connector plugged to Bi polar stepper motor.

✅ Key Bullet Points:

• Stepper Motor Connection Cable: High-quality terminal wire for connecting stepper motors to control boards in 3D printers, CNC machines, and robotics.

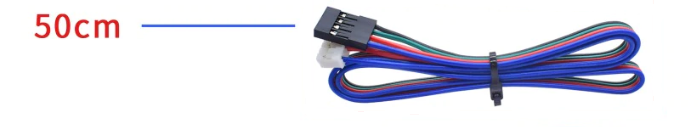

• 500mm Extended Length: 50cm cable provides flexible reach for wire routing in compact or large-frame machines—reduces stress on connectors and improves cable management.

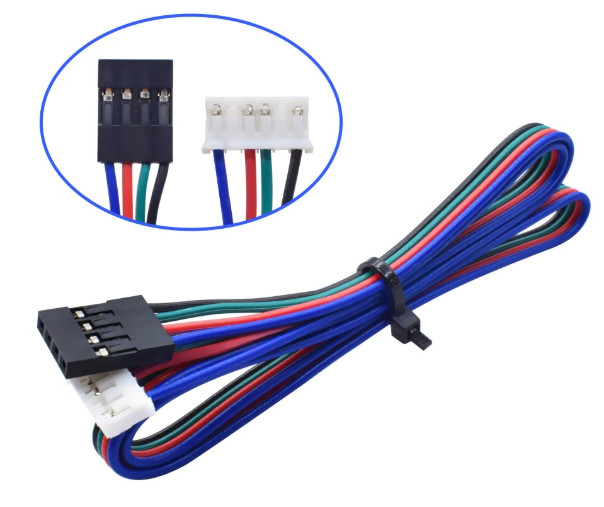

• XH2.54 to Dupont Female: Features a 6-pin XH2.54mm connector on one end and a 4-pin Dupont female connector on the other, compatible with many controller boards.

• Compatible with NEMA Motors: Designed to fit most NEMA17 and NEMA23 stepper motors used in Creality, Ender, Prusa, Anet, and other Reprap-style 3D printers and CNC setups.

• Plug & Play Wiring Harness: Pre-crimped and assembled—just plug it into your motor and board without soldering. Ideal for repairs, upgrades, and DIY builds.
